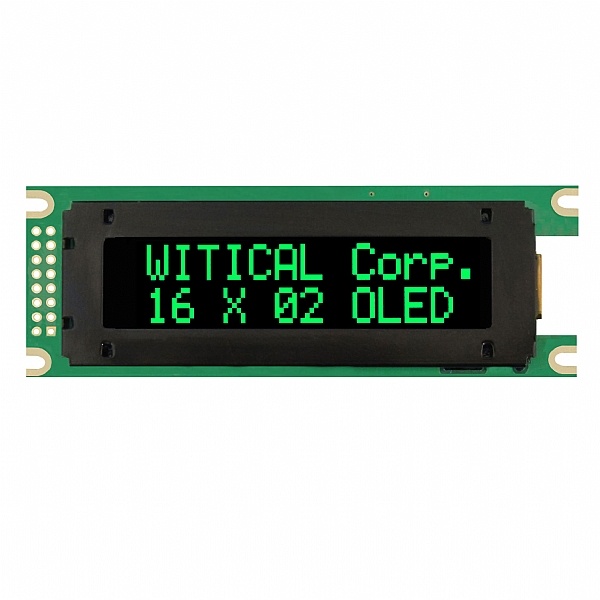

WH1602GG
|
Item
|
Description
|
|
Product No.
|
WH1602GGIFF000
|
|
Acvive Area
|
56.22(W)mm×11.52(H)mm
|
|
Viewing Area
|
58.22(W)mm×13.52(H)mm
|
|
Module Size
|
85.00(W)mm×30.00(H)mm×9.7max(D)mm
|
|
Dot Size
|
0.57(W)mm×0.67(H)mm
|
|
Dot Pitch
|
0.60(W)mm×0.70(H)mm
|
|
Display Format
|
16 characters (W)×2 lines (H)
|
|
Duty Ratio
|
1/16 Duty
|
|
Controller
|
SSD1311 or Equivalent
|
INTERFACE PIN ASSIGNMENT
|
Pin No.
|
Symbol
|
External
Connection
|
Description
|
| 1 | VSS | Power Supply | Ground |
| 2 | VDD | Power Supply | Supply Voltage for OLED and logic |
| 3 | Vo |
－
|
Contrast Adjustment |
| 4 | RS(D/C#) |
MPU
|
Register select signal. H: DATA, L: Command |
| 5 | R/W# (WR#) |
MPU
|
6800‐interface:
Read/Write select signal,
R/W=1: Read R/W: =0: Write
8080‐interface:
Active LOW Write signal.
|
| 6 | E or /RD |
MPU
|
6800‐interface:
Operation enable signal. Falling edge triggered.
8080‐interface:
Active LOW Read signal.
|
| 7-14 | DB0-DB7 |
MPU
|
8‐bit Bi‐directional data bus lines |
| 15 | NC |
－
|
No Connect |
| 16 | NC |
－
|
No Connect |
ELECTRICALCHARACTERISTICS
|
Item
|
Symbol
|
Condition
|
Min.
|
Typ
|
Max.
|
Unit
|
|
Power Supply
for Logic
|
VDD
|
(Wide Voltage I/O Application)
|
4.5
|
5.0
|
5.5
|
Volt
|
|
Input Voltage
for I/O Pins
|
Vi
|
4.5
|
5.0
|
5.5
|
Volt
|
|
|
Input Voltage
|
VIL
|
L level
|
0
|
-
|
0.2 VDD
|
Volt
|
|
VIH
|
H level
|
0.8 VDD
|
-
|
VDD
|
Volt
|
|
|
Output Voltage
|
VOL
|
L level
|
0
|
-
|
0.1 VDD
|
|
|
VOH
|
H level
|
0.9 VDD
|
-
|
VDD
|
||
|
Power Supply
Current for
OLED
|
IDD
|
Note
|
-
|
20
|
|
mA
|
|
Sleep Mode Current for
VDD
|
IDD,SLEEP
|
|
|
2
|
10
|
μA
|
